What is the ISOBUS?

The ISOBUS technology is a milestone in the development of agriculture. In the course of farming, professionals often have to use machines and implements from different manufacturers. These different tools’ own, non-standardized solutions make it difficult to use the components commonly. For many implements a separate control unit (terminal) is required, which makes hard to exchange the devices for each session.

The primary aim of the ISOBUS data-forwarding and operation is to standardize the communication between the tractors and the agricultural devices while providing entire compatibility for the data-operation of the different mobile systems and office softwares.

ISOBUS Development

If you have a very new idea or an already existing system, we can provide a solution for that. In our office in Debrecen, Hungary, our developers are working on it to make a suitable and flexible solution for Your requirements.

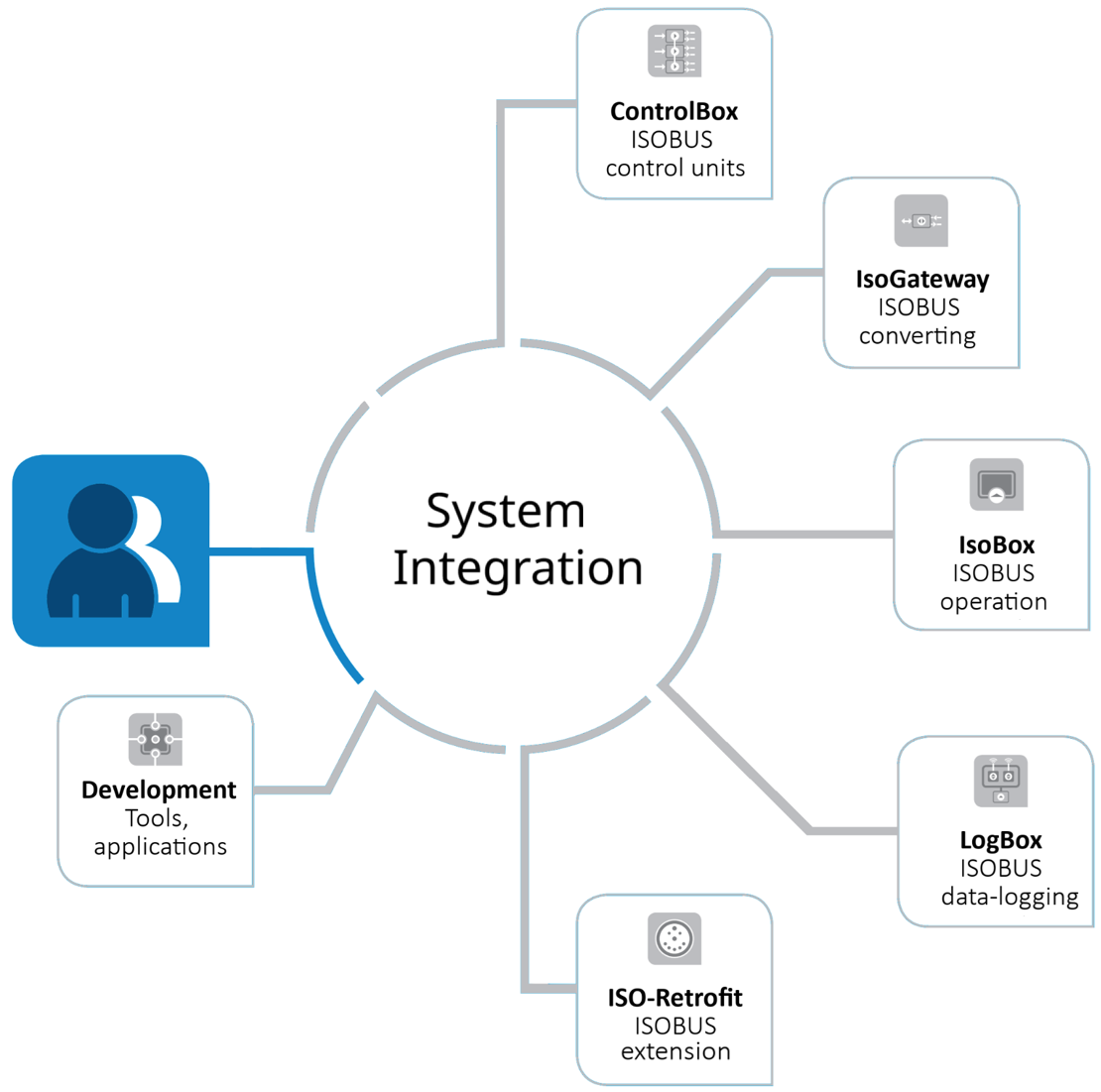

We can provide a full-scale support include the system integration, cables, hardware units and software modules for every module and every function of the ISOBUS ISO 11783.

Fast modernization: we can fast extend your existing control units - implement all the required functionality of ISOBUS – for example with adding the gateway module into your systems. Your machine software can work further as it was, but it can use the ISOBUS as an optional feature.

For our solutions we can provide a development kit as well. Even without the know-how of ISOBUS can it be possible to work further with our modules by your own.

panel:app UT

app UT includes the ISO 11783:06 (ISOBUS UT) version 4, which also provides support for the latest implement controls.
The panel: app UT supports 12 physical buttons (SoftKey) and 64 virtual buttons, touch control with European, Eastern European and Cyrillic character support.

panel:app TractorECU

The application incorporates ISO 11783: 09 (TractorECU) functionality to simulate the basic tractor functions (speed, voltage and ignition status sharing) required for ISOBUS implements on a non-ISOBUS machine.
For the necessary data, the program can use the connected GPS signal or the wheel sensor or PTO sensor data received through the ISO11786 signal connector on each device.

panel:app TC

The application includes ISO 11783:10 (ISOBUS TC-BAS) Version 3,which also provides support for the latest implement controls.
The panel: app TC logs the activity of any number of machines and keeps track of planned and executed tasks. The ISOXML packages required for operation can be synchronized by the users via USB with any Farm Management software.

panel:app TC-GEO

The application implements ISO 11783: 10 (ISOBUS TC-GEO) map-based variable application control. The control requires correct GPS signals and ISOXML application map. The ISOXML format is supported by most Farm Management software and can be loaded via USB.
The panel: app TC-GEO supports multiple functions per machine, but one control channel per function, and both grid and polygon maps can be used.

panel:app PT

The application is a virtual guide that helps the driver in kepping the correct track based on GPS signals and stored or on-the-fly map data.
The panel: app PT can use the ISOBUS implement information, so in case of correct machines (ISO11783: 10 TC client) the machine geometry is automatically recognized by the system.
The panel: app PT can track A-B, A+, contour, circle or route-based trails with 5Hz accuracy.

panel:app SC

The application implements ISO 11783: 10 (ISOBUS TC-SC) map-based section control. This control requires a proper GPS receiver. The panel: app SC works with field data included in the ISOXML package or recorded during work and supports control of up to 64 sessions.

panel:app CAM

The application can display images of up to 8 cameras connected through an Ethenet connection. Although the screen size allows you to display only one image at a time, the application can also be set for automatic camera changes.
The application also supports camera-specific settings such as mirroring, naming.

panel:app VRA

The application converts information provided by N-sensor systems into ISOBUS-compatible instructions, which can serve as basic data for application rate control.
panel:app VRA supports ASD and LH5000 protocols.
